Marine hlua

Mooring hlua yog ua los ntawm high-zoo hluavtaws fiber, ua los ntawm thoob ntiaj teb advanced braiding tshuab thiab tshuab. t muaj peb, plaub, rau, yim, thiab kaum ob strands thiab ob chav braiding; cov khoom yuav yog PP. Polyester, Nyon.UHMWPE, aramid fiber lossis hluavtaws ntaub; txoj kab uas hla ntawm 6 hli -140mm;
Nws muaj qhov zoo ntawm lub zog siab, qis elongation, zoo hnav tsis kam, tiv thaiv corrosion, mos thiab du, thiab yooj yim tuav. Vim nws yog lub teeb heev, tus neeg teb xov tooj tsis yooj yim rau kev raug mob, mooring yog hloov ib feem ntawm cov hlau hlau ropes maj mam.
yog siv rau hauv cov khoom siv thauj khoom, nuv ntses, chaw nres nkoj, kev tsim hluav taws xob, kev tshawb nrhiav roj, kev ua tub rog hauv tebchaws.
qhov project, dej hiav txwv project, thiab cov khoom siv tshwj xeeb.

20240712111420

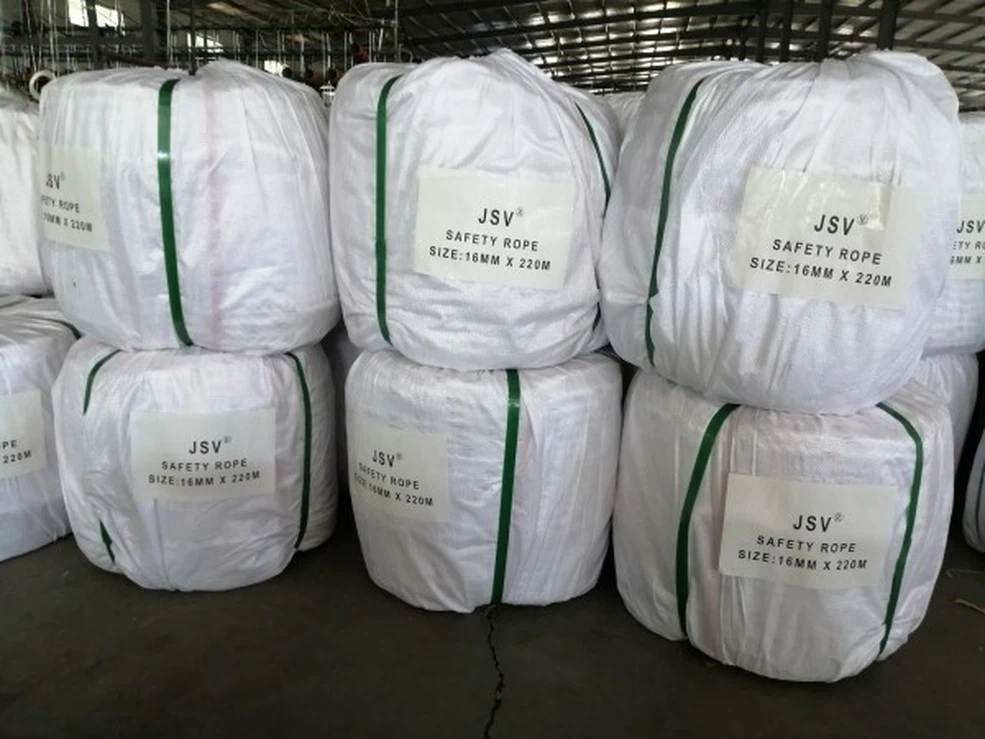

20240712111436

Mooring hlua yog ua los ntawm cov hluavtaws fiber ntau zoo, ua los ntawm thoob ntiaj teb advanced braiding tshuab thiab tshuab;
Nws muaj peb, plaub, rau, yim, kaum ob strand thiab ob chav braiding; cov khoom yuav yog PP, polyester, nyon, UHMWPE, aramid fiber los yog hluavtaws ntaub; txoj kab uas hla ntawm 6 hli -140 hli;
Nws muaj qhov zoo ntawm lub zog siab, tsis tshua muaj elongation, zoo hnav tsis kam, tiv thaiv corrosion, mos thiab du thiab yooj yim tuav.Vim tias nws yog lub teeb heev, tus neeg teb xov tooj tsis yooj yim kom raug mob; mooring yog hloov ib feem ntawm cov hlau hlua maj mam.
Nws yog tsuas yog siv nyob rau hauv shipping equip, nuv ntses, harbour tuav, hluav taws xob siv hluav taws xob, kev tshawb fawb roj, lub teb chaws ilitary, project, dej hiav txwv project, thiab tshwj xeeb cov khoom siv cheeb tsam.

Peb txoj hlua

Txoj kab uas hla	Polyamiderope		Polypropylene hlua		Polyaster hlua		Polypropylene monofilament hlua		Polythylene monofilament hlua		Polyester / Polyamide sib xyaw hlua
Txoj kab uas hla	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)
4	10.5	3.15	6	2	11.8	2.9	6	2.14	8.1	1.96	7	2.8
6	22.5	7.35	17	3.8	27	554	17	6	182	3.92	17.5	6.8
8	40	13.2	30	6.8	48	10	30	10.6	32.7	6.86	31	11.9
10	62	20.4	45	10.5	76	15.6	45	15.6	49	10.7	48.5	18.2
12	89	29.4	65	15	110	22.3	65	22.1	72	1510	69.9	25.7
14	122	40.2	90	20.3	148	31.2	90	30.5	95	20.5	95.1	34.7
16	158	52	115	27.5	195	39.8	115	37.7	128	27.5	124	44.8
18	200	65.7	148	32	245	49.8	148	48.1	161	34	157	56.1
20	245	81.4	180	41.5	303	62.3	180	58	200	41.9	194	68.7
22	300	98	220	49.5	367	74.7	220	69.6	243	49.8	235	82.1
24	355	118	260	58.5	437	89.6	260	81.3	295	5980	279	96.3
26	420	137	305	67	512	105	305	94	328	68	328	113
28	485	155	355	78	594	120	355	107	393	80.5	380	130
30	555	174	405	90	682	134	405	122.2	460	93	437	148
32	630	196	460	102	778	154	460	135	525	105	497	167
36	800	244	585	128	982	190	585	169.2	660	132	629	210
40	990	294	720	158	1215	235	720	205	785	160	776	257
44	1200	351	880	185	1468	279	880	246.3	950	192.5	939	308
48	1420	412	1040	219	1750	329	1040	286	1150	224	1110	364
52	1660	479	1220	255	2050	384	1220	331	1350	259	1320	424
56	1930	549	1420	295	2380	439	1420	378.4	1570	298	1520	489
60	2210	626	1630	335	2730	489	1630	432.7	1800	338	1750	558
Lus Cim: 1Ktex=1g/m 1kn=0.102Ton

Braided hlua

Txoj kab uas hla	Polyamide hlua		Polypropylene hlua		Polyaster hlua		Polypropylene monofilament hlua		Polythylene monofilament hlua
Txoj kab uas hla	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)
4	11	3.20	7.5	2.00	118	2.95	6	2.15	8	2.00
5	16.5	5.00	12	3.00	18.6	4.00	11.5	3.20	12	3.00
6	24	7.50	17	4.00	27	5.65	17	6.00	18	4.00
7	32	10.20	25	5.50	36.5	7.70	23	7.50	25	5.50
8	40	13.50	30	7.00	48	10.20	30	10.60	32.5	7.00
9	50	17.00	38	8.90	62	12.70	37	11.90	40.5	8.90
10	62	20.80	48	10.90	76	15.90	45	15.60	49.5	10.90
12	90	30.00	68	15.40	110	22.70	65	22.10	72	15.40
14	125	41.00	95	20.90	148	31.80	90	30.50	95	20.90
16	160	53.00	125	28.00	195	41.00	115	37.80	128	28.00
18	205	67.00	155	35.00	245	51.50	150	48.20	160	35.00
20	250	83.00	190	43.00	303	64.00	180	58.00	200	43.00
22	305	100.00	230	51.00	367	76.00	220	69.60	240	51.00
24	360	120.00	270	61.00	437	91.00	260	81.30	295	61.00
26	430	140.00	320	70.00	512	107.00	300	94.10	325	70.00
28	500	158.00	370	82.00	595	122.00	360	107.00	390	82.00
30	570	178.00	425	95.00	682	137.00	400	122.20	460	95.00
32	650	200.00	480	107.00	778	157.00	460	135.00	525	107.00
34	720	220.00	550	116.00	875	174.00	530	144.00	590	116.00
36	820	249.00	615	134.00	9B2	194.00	595	169.30	660	134.00
40	1000	300.00	760	163.00	1215	240.00	720	205.10	785	163.00
44	1200	358.00	930	192.00	1468	285.00	880	246.40	950	192.00
48	1420	420.00	1100	228.00	1750	336.00	1050	286.10	1150	228.00
52	1650	489.00	1280	264.00	2050	39200	1220	331.10	1350	264.00
56	1950	560.00	1490	304.00	2380	448.00	1420	378.60	1570	304.00
60	2230	639.00	1720	344.00	2730	499.00	1630	432.90	1800	344.00
Lus Cim: 1Ktex=1g/m 1kn=0.102Ton

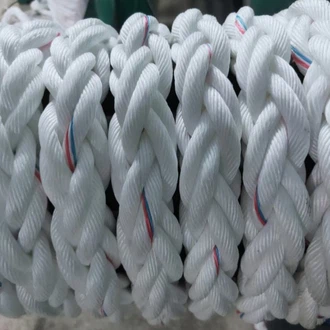

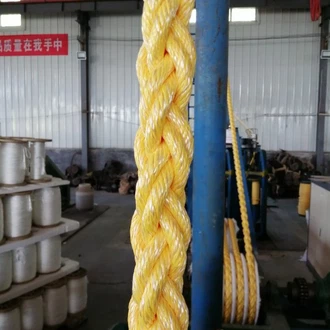

8-strand thiab 12-strand mooring hlua

Txoj kab uas hla	Polyamide hlua		Polypropylene hlua		Polyaster hlua		Polypropylene monofilament hlua		Polythylene monofilament hlua
Txoj kab uas hla	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)	Linear ceev (Ktex)	Tsawg kawg nkaus load (Kn)
20	245	81.40	180.0	56.90	303	62.30	180	58.00	195	68.00
24	355.0	118.00	260	79.70	437.0	89.60	260.0	81.30	280	96.00
28	485	155.00	355	104.90	594	120.00	355	107.00	380	130.00
32	630	196.00	460	132.30	778.0	154.00	460	134.90	497	168.00
36	800	244.00	585	165.90	982	190.00	585	169.20	629.0	212.00
40	990	249.00	720	201.00	1215	235.00	720	205.00	776.0	260.00
44	1200	351.00	880	241.50	1468	279.00	880	246.30	939.0	312.00
48	1420	412.00	1049	280.40	1750	329.00	1049	286.00	1110	370.00
52	1660	479.00	1220	324.50	2050	384.00	1220	331.00	1320	430.00
56	1930	549.00	1420	371.00	2380	439.00	1420	378.40	1520	496.00
60	2210	626.00	1630	424.20	2730	489.00	1630	432.70	1750	568.00
64	2520	706.00	1850	480.00	3110	568.00	1850	489.60	1990	640.00
72	3190	882.00	2340	602.70	3930	707.00	2340	614.80	2520	805.00
80	3940	1078.00	2900	741.30	4850	867.00	2900	756.10	3110	982.00
88	4770	1284.00	3510	889.50	5870	1040.00	3510	907.30	3750	1182.00
96	5680	1510.00	4170	1050.00	6990	1230.00	4170	1071.00	4470	1396.00
104	6660	1785.00	4900	1204.40	8200	1420.00	4900	1228.50	5260	1620.00
112	7720	2060.00	5700	1390.00	9500	1620.00	5700	1417.80	6050	1875.00
120	8870	2354.00	6500	1596.00	10900	1856.00	6500	1628.00	6980	2140.00
128	10100	2650.00	7400	1801.80	12400	2130.00	7400	1837.80	7950	2415.00
136	11400	2980.00	8400	2028.60	14000	2390.00	8400	2069.20	8950	2718.00
140	12758	3310.00	8890	2144.50	15649	2523.00	8890	2187.40	9970	3020.00
Lus Cim: 1Ktex=1g/m 1kn=0.102Ton

Uhmwpe mooring hlua ntawm 3-strand

Khoom siv:UMWPE mooring hlua ntawm peb yim-strand thiab kaum ob-strand yog tsim tom qab resin kho ntawm cov xov paj nrog
cov txheej txheem thoob ntiaj teb siab heev.Kev tiv thaiv lub tes tsho tuaj yeem ntxiv raws li cov neeg siv khoom xav tau, uas tuaj yeem txhim kho
Lub peev xwm hnav-tiv taus.Raws li lub zog, nws yog siab dua cov hlua hlau steel nrog tib txoj kab uas hla, tab sis qhov hnyav tsuas yog
15% ntawm cov hlua hlau.Low elongation ntawm 3.
resistant, zoo dabtsi yog khoov thiab ant-fatigue muaj peev xwm, qaug zog tsis kam yog 1000 npaug ntawm cov hlau hlau hlua thiab nylon hlua.

Daim ntawv thov teb:mooring, anchoring, liting sling, towage, tub rog kev lag luam, dej hiav txwv roj, thiab dej hiav txwv thauj, thiab lwm yam.

Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(KN)
6	45355	23	±10	5	37	33.00
8	1	40	±10	8.0	65.5	58.70
10	1-1/4	61	±8	12	102	92.00
12	1-1/2	87	±8	17	147	132.00
14	1-3/4	117	±8	23	200	180.00
16	2	151	±5	30	260	235.00
18	2-1/4	190	±5	38	310	283.00
20	2-1/2	232	±5	46	380	340.00
22	2-3/4	281	±5	56	450	400.00
24	3	331	±5	66	520	470.00
26	3-1/4	384	±5	77	600	540.00
28	3-1/2	445	±5	89	680	610.00
30	3-3/4	506	±5	101	770	690.00
32	4	575	±5	115	870	780.00
34	4-1/4	648	±5	130	960	860.00
36	4-1/2	720	±5	144	1040	940.00
38	4-3/4	798	±5	160	1160	1040.00
40	5	881	±5	176	1260	1130.00
44	5-1/2	1060	±5	212	1460	1310.00
48	6	1250	±5	250	1700	1530.00
52	6-1/2	1460	±5	292	1970	1770.00
56	7	1690	±5	338	2260	2030.00
60	7-1/2	1930	±5	386	2530	2280.00

Uhmwpe mooring hlua ntawm 8-strand thiab 12-strand

Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(KN)
20	2-1/2	232	±5	46.4	380	340
22	2-3/4	281	±5	56.2	450	400
24	3	331	±5	66.2	520	470
26	3-1/4	384	±5	76.8	600	540
28	3-1/2	445	±5	89	680	610
30	3-3/4	506	±5	101.2	770	690
32	4	575	±5	115	870	780
34	4-1/4	648	±5	129.6	960	860
36	4-1/2	720	±5	144	1040	940
38	4-3/4	798	±5	159.6	1160	1040
40	5	881	±5	176.2	1260	1130
44	5-1/2	1060	±5	212	1460	1310
48	6	1250	±5	250	1700	1530
52	6-1/2	1460	±5	292	1970	1770
56	7	1690	±5	338	2260	2030
60	7-1/2	1930	±5	386	2530	2280
64	8	2200	±5	440	2840	2560
68	8-1/2	2480	±5	496	3170	2850
72	9	2780	±5	556	3520	3170
76	9-1/2	3090	±5	618	3890	3500
80	10	3430	±5	686	4300	3870
88	11	4170	±5	834	5200	4680
96	12	4970	±5	994	6180	5560
104	13	5800	±5	1160	7180	6470
112	14	6730	±5	1346	8280	7460
120	15	7720	±5	1544	9440	8500
128	16	8790	±5	1758	10670	9610
136	17	9920	±5	1984	11930	10750
140	17-1/2	10510	±5	2102	12560	11320

3-strand,8-strand thiab 12-strand ob fiber braided mooring hlua ntawm polyester thiab polyolefin

Cov khoom: cov khoom no yog tsim los ntawm kev ua haujlwm tshwj xeeb, los ntawm kev sib xyaw polyester thiab lub zog siab polyolefin ua ke.
txheej ntawm txoj hlua yog them los ntawm polyester fiber, hlua xov paj tuav 40% ntawm otal qhov hnyav (ntxiv nws cov hnav tsis kam); sab hauv cov hlua yog 100%
siab zog polylefin twisted rau sawv;

Qhov zoo: siab zog, lub teeb yuag, ntab, tiv thaiv corrosion, tiv taus dej hiav txwv, yog li, tsis muaj dej nqus, tiv thaiv UV, hnav zoo
tsis kam, ntev kev pab cuam lub neej thiab lwm yam.

Daim ntawv thov teb: siv los ua cov nkoj, dej hiav txwv shipping, kev tshawb fawb txog kev tiv thaiv hauv tebchaws, chaw nres nkoj thiab pier mooring, marine thiab lwm yam.

Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(KN)
6	3/4	17.5	±10	3.5	6.2	0.63
8	1	31.0	±10	6.2	10.5	1.07
10	1-1/4	48.5	±8	9.7	16.5	1.68
12	1-1/2	69.9	±8	13.98	23	2.35
14	1-3/4	95.1	±8	19.02	31	3.16
16	2	124	±5	24.8	40.5	4.13
18	2-1/4	157	±5	31.4	50.6	5.16
20	2-1/2	194	±5	38.8	62	6.32
22	2-3/4	235	±5	47	75	7.65
24	3	279	±5	55.8	86.5	8.82
26	3-1/4	328	±5	65.6	102	10.40
28	3-1/2	380	±5	76	116	11.80
30	3-3/4	437	±5	87.4	135	13.77
32	4	497	±5	99	150	15.30
36	4-1/2	629	±5	126	190	19.38
40	5	776	±5	155	231	23.56
44	5-1/2	939	±5	188	277	28.25
48	6	1110	±5	222	328	33.45
52	6-1/2	1320	±5	264	382	38.96
56	7	1520	±5	304	440	44.88
60	7-1/2	1750	±5	350	502	51.20
64	8	1990	±5	398	568	57.94
68	8-1/2	2250	±5	450	625	63.75
72	9	2520	±5	504	710	72.42
80	10	3110	±5	622	867	88.43
88	11	3750	±5	750	1040	106.08
96	12	4470	±5	894	1230	125.46
104	13	5260	±5	1052	1430	145.86
112	14	6050	±5	1210	1660	169.32
120	15	6980	±5	1396	1890	192.78
128	16	7950	±5	1590	2130	217.26
136	17	8950	±5	1790	2390	243.78
140	17-1/2	9525	±5	1905	2530	258.16V

Ob chav braided mooring hlua

Cov khoom siv: Peb siv cov cuab yeej siv thoob ntiaj teb siab heev.Inside yog hlua hlua, sab nraud txheej yog braided tes tsho, los tiv thaiv cov hlua hauv cov tub ntxhais.Qhov saum npoo yog puag ncig thiab du, mos thiab zoo nkauj, uas tau txhim kho txoj hlua kev ua tau zoo. Raws li cov khoom siv, Nws muab faib ua multiflament polyamide, multiflament polypropylene, multifilament polyester, multiflament polyester / polypropylene.Character: hnav resistant, seawater resistant, tshuaj resistant, laus resistant, kub resistant, elongation yog qis dua li ib txwm hlua, yooj yim ua hauj lwm, thiab lwm yam.

Daim ntawv thov teb: Feem ntau siv hauv Dej Hiav Txwv trnsportation, Shipbuilding, Roj tshawb nrhiav, Kev lag luam tiv thaiv hauv tebchaws, chaw nres nkoj
kev ua haujlwm, thiab Ocean engineering, thiab lwm yam.

Polypropylene (pp) ob chav braided mooring hlua

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	864	±5	172.8	230	23.47
42	5-1/4	910	±5	182	249	25.41
45	5-5/8	1050	±5	210	291	29.69
50	6-1/4	1320	±5	264	350	35.71
55	6-7/8	1590	±5	318	420	42.86
60	7-1/2	1865	±5	373	498	50.82
65	8-1/8	2180	±5	436	580	59.18
70	8-3/4	2545	±5	509	671	68.47
75	9-3/8	2910	±5	582	750	76.53
80	10	3318	±5	663.6	850	86.73
85	10-5/8	3725	±5	745	950	96.94
90	11-1/4	4225	±5	845	1070	109.18
95	11-7/8	4640	±5	928	1170	119.39
100	12-1/2	5180	±5	1036	1301	132.76
104	13	5600	±5	1130	1390	141.84
112	14	6500	±5	1311.8	1592	162.45
120	15	7532	±5	1506.4	1814	185.10

Polyester (terylene) ob chav braided mooring hlua

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	1278	±5	255.6	345.5	35.26
44	5-1/2	1550	±5	310	402.2	41.04
48	6	1845	±5	369	473.2	48.29
52	6-1/2	2220	±5	444	545.4	55.65
56	7	2575	±5	515	643.8	65.69
60	7-1/2	2962	±5	592.4	722.1	73.68
64	8	3348	±5	669.6	815.4	83.20
72	9	4465	±5	893	1051.6	107.31
80	10	5581	±5	1116.2	1265.5	129.13
88	11	6697	±5	1339.4	1511.7	158.34
96	12	7813	±5	1562.6	1760.1	179.60
104	13	9130	±5	1826	2024.6	206.59
112	14	10500	±5	2100	2345.7	239.36
120	15	12100	±5	2420	2668.6	272.31

Polyamide (nylon) ob chav braided mooring hlua

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	1101	±5	220.2	356.8	36.41
44	5-1/2	1326	±5	265.2	416.6	42.51
48	6	1578	±5	315.6	508.2	51.86
52	6-1/2	1848	±5	369.6	592.4	60.45
56	7	2143	±5	428.6	661.2	67.47
60	7-1/2	2460	±5	492	762.3	77.79
64	8	2798	±5	559.6	865.4	88.31
72	9	3542	±5	708.4	1114	113.67
80	10	4375	±5	875	1295	132.14
88	11	5298	±5	1059.6	1524	157.35
96	12	6295	±5	1259	1791	182.76
104	13	7375	±5	1475	2084	212.65
112	14	8556	±5	1711.2	2416	246.53
120	15	9822	±5	1964.4	2755	281.12

Polyester / Polypropylene sib xyaw ob chav braided

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Min.Ruag load
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear densit (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	901	±5	180.2	265	27.04
42	5-1/4	998	±5	199.6	295	30.10
45	5-5/8	1145	±5	229	338	34.50
50	6-1/4	1410	±5	282	410	41.84
55	6-7/8	1710	±5	342	495	50.51
60	7-1/2	2035	±5	407	585	59.69
65	8-1/8	2386	±5	477.2	687	70.10
70	8-3/4	2770	±5	554	800	81.63
75	9-3/8	3180	±5	636	917	93.57
80	10	3610	±5	722	1036	105.71
85	10-5/8	4085	±5	817	1170	119.39
90	11-1/4	4580	±5	916	1315	134.18
95	11-7/8	5100	±5	1020	1470	150.00
100	12-1/2	5660	±5	1132	1629	166.22
110	13-3/4	6760	±5	1352	2032.13	207.36
120	15	7880	±5	1576	2346.51	239.44

Uhmwpe ob chav braided mooring hlua

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Txoj Kev Ua Zog
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	950.0	±5	190	1210.30	123.50
44	5-1/2	1168.2	±5	234	1429.82	145.90
48	6	1368.2	±5	274	1629.62	166.30
52	6-1/2	1640.9	±5	328	1929.62	196.90
56	7	1900.0	±5	380	2219.70	226.50
60	7-1/2	2168.2	±5	434	2509.78	256.10
64	8	2440.9	±5	488	2790.06	284.70
72	9	3140.9	±5	628	3510.36	358.20
80	10	3809.0	±5	762	4169.60	425.50
88	11	4581.8	±5	916	4919.60	502.00
96	12	5390.9	±5	1078	5689.88	580.60
104	13	6518.2	±5	1304	6769.84	690.80

Polyamide (nylon) / polyester sib xyaw ob chav braided mooring hlua

Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	Txoj Kev Ua Zog
Txoj kab uas hla (mm)	Lub voj voog (INCH)	Linear ceev (Ktex)	Kev sib txawv (%)	Theoretical hnyav (Kg / 200M)	(KN)	(Ton)
40	5	1240	±5	248	385.14	39.30
44	5-1/2	1500	±5	300	462.56	47.20
48	6	1782	±5	356	546.84	55.80
52	6-1/2	2091	±5	418	646.80	66.00
56	7	2418	±5	484	737.94	75.30
60	7-1/2	2782	±5	556	833.98	85.10
64	8	3159	±5	632	933.94	95.30
72	9	4000	±5	800	1179.92	120.40
80	10	4950	±5	990	1439.62	146.90
88	11	5982	±5	1196	1729.70	176.50
96	12	7118	±5	1424	2050.16	209.20
104	13	8350	±5	1670	2390.22	243.90
112	14	9691	±5	1938	2749.88	280.60
120	15	11100	±5	2220	3130.12	319.50

Xaiv txoj hlua kom raug
Ropeisan yog cov cuab yeej ua haujlwm tseem ceeb, kev siv txoj hlua tsim nyog tuaj yeem muab kev pabcuam txuas ntxiv thiab txhim khu kev qha. Muab kev tiv thaiv zoo tshaj plaws thiab zoo tshaj plaws pib nrog kev xaiv txoj hlua zoo. Txiav txim siab txoj hlua lub zog, poob, kev ua haujlwm zoo, thiab hloov txoj hlua raws sij hawm kom tsis txhob ua rau poob loj. Kev hloov cov hlua khi yog tsawg dua qhov kev raug mob ntawm tus kheej los ntawm txoj hlua siv tsis tau.
Xaiv txoj hlua muaj ntau yam, qee qhov yog qhov yooj yim, xws li asropespecifcations. Txo txoj hlua loj lossis lub zog yuav tsum tau ua thaum thawj zaug ntawm kev yuav khoom yuav ua rau tsis muaj kev hloov pauv thiab muaj peev xwm txaus ntshai, nrog rau cov nqi mus sij hawm ntev ntxiv

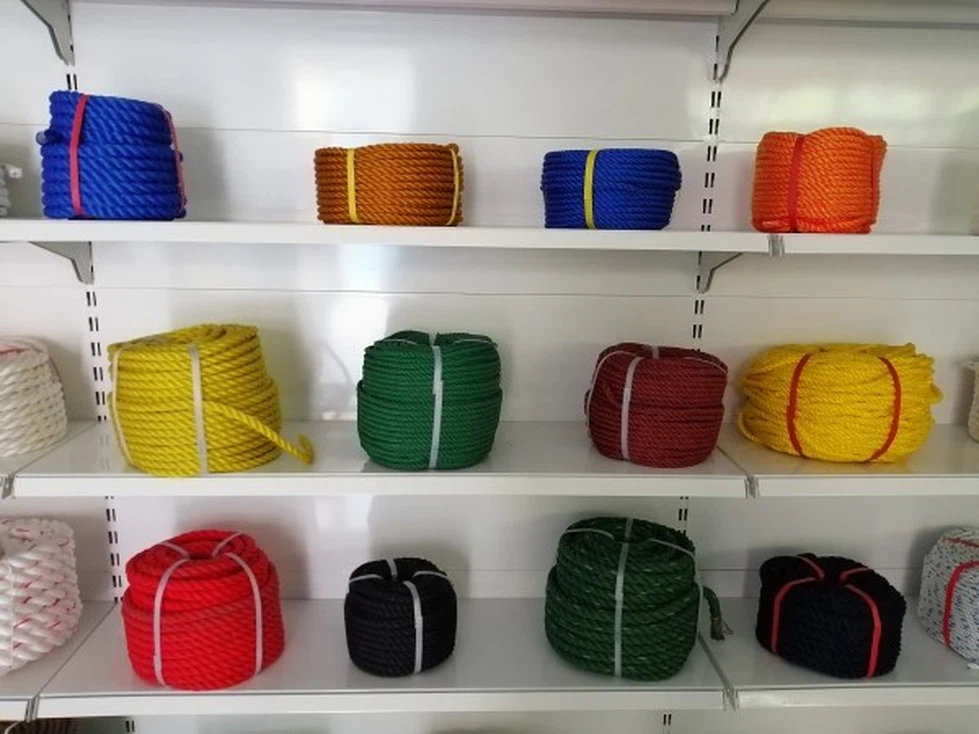

20240712111440

1. Lub zog
Rau ib txoj kab uas hla, xaiv txoj hlua uas muaj zog tshaj plaws.
2. Elongation
Feem ntau, txoj hlua nrog qis elongation nyob rau hauv load yuav muab kev tswj kom zoo dua load, uas yog heev pab tau nyob rau hauv complex ua hauj lwm qhov chaw. Txawm li cas los xij, txoj hlua tuaj yeem raug puas tsuaj los ntawm kev cuam tshuam ntawm qhov qis elongation, txawm tias cov hlua zoo li zoo li zoo li. Extension ntawm txoj hlua qis yuav tsum ua kom muaj kev siv zog ntau dua, qhov no yog qhov tseem ceeb heev hauv cov chaw ua haujlwm nyuaj.

Txawm li cas los xij, txoj hlua tuaj yeem raug puas tsuaj los ntawm kev cuam tshuam ntawm qhov qis elongation, txawm tias cov hlua zoo li zoo li zoo li. Extension ntawm txoj hlua qis yuav tsum ua kom muaj kev siv zog ntau dua.
3. cuam tshuam load
Ntau tshaj 10% ntawm qhov kev ua haujlwm tam sim ntawd tuaj yeem hu ua qhov cuam tshuam load.Qhov siab dua qhov khoom ntog, qhov cuam tshuam ntau dua. Tom qab qhov cuam tshuam ntawm kev thauj khoom, txoj hlua txawm nyob rau hauv qhov chaw ua haujlwm kuj tseem ua rau puas tsuaj.

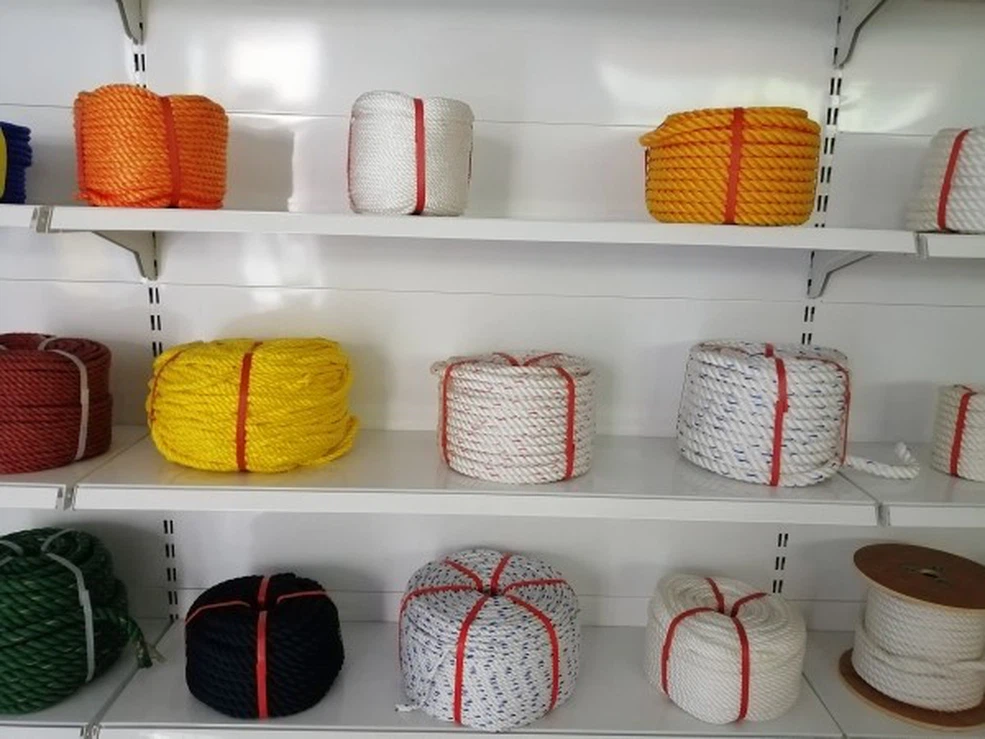

20240712111444
4. Hardness
Xaiv cov hlua uas muaj zog, sib npaug, uas khaws nws cov duab thaum siv. Cov hlua fibers yog ncaj, uas tuaj yeem txhim kho lub zog, tab sis cuam tshuam qhov kev ruaj khov ntawm txoj hlua.
5. Cov qauv thiab hnav-tiv taus
Kev xaiv txoj hlua khi kom raug muaj qhov cuam tshuam tseem ceeb rau nws Ife, cov qauv ntawm txoj hlua yuav muaj kev cuam tshuam rau kev sib txhuam thiab hnav.

20240712111504 20240712111509 20240712111516
6. Kev ua haujlwm
Kev ua haujlwm yog qhov hnyav txhua hnub los ua pob txha los ntawm cov hlua, yuav tsum muaj lub ntsej muag zoo nkauj nplhaib. Hauv cov ntawv thov nruj me ntsis hauv kev ua haujlwm dav dav, cov khoom ua haujlwm nyob ntawm qhov feem pua ntawm qhov kwv yees tawg lub zog ntawm cov hlua uas tsis tau siv tshiab.
Siv txoj hlua kom raug
Zam txhua qhov kev sib txhuam:Txhua txoj hlua nyob rau hauv qhov ntxhib saum npoo thiab cov npoo ntse ntawm kev ua haujlwm yuav ua rau hnyav hnyav thiab tsim kua muag. Leader pliers, kab, winch, reel, thiab lwm yam yuav tsum xyuas kom meej tias tsis hnav thiab nyob rau hauv zoo.
Txo twisting ntawm ropes:Ib qho hnyav me me, xws li 3 feet (lossis meters) ntawm txoj hlua ntev tig ib ncig ntawm 4 lub lis piam thiab yuav txo tau lub zog ntawm 10-30%. Ib zaugtheropeis siv tsis tuaj yeem rov qab mus rau qhov chaw dhau los.
Tsis txhob raug tshuaj lom neeg: raug tshuaj lom neeg, xws li cov kuab tshuaj, cov kua qaub alkalis, thiab lwm yam kev puas tsuaj ib puag ncig yuav tshwm sim.
Tsis txhob overheating:Thaum tshav kub kub yuav cuam tshuam rau lub zog ntawm cov tshuaj fiber ntau hlua, winch, los yog nyob rau hauv kev siv, peb yuav tsum tau xyuam xim kom tsis txhob muaj lub winch thiab winch rotation los ntawm kev cuam tshuam. zawv zawg kev sib txhuam wi ua rau lub zos overheating thiab hluavtaws fiber ntau melting.Yog li ntawd cov hlua ruaj khov.

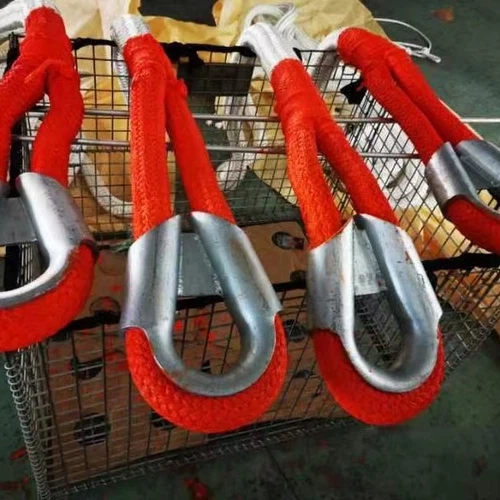

20240712111654 20240712111647
Cia:Khaws cov hlua kom huv si, qhuav, tsaus, kom deb ntawm kev kub dhau
Kev tshuaj xyuas hlua thiab hloov
Q: Thaum twg yuav hloov txoj hlua?
A: Cov lus teb yooj yim tshaj plaws yog hloov txoj hlua thaum tawg. Tab sis tsis tau ua tib zoo tshuaj xyuas ntawm txoj hlua thiab nkag siab txog nws cov keeb kwm ntawm kev thauj khoom, tsuas yog tuaj yeem kwv yees. Hmoov tsis zoo, tsis muaj txoj cai meej lossis cov qauv kev lag luam los txiav txim siab tias txoj hlua yuav tsum tau hloov. Qhov no yog vim muaj ntau yam tuaj yeem cuam tshuam rau lub zog ntawm txoj hlua, xws li cov keeb kwm thauj khoom, khoov lub vojvoog, kev sib txhuam, tshuaj lom neeg, thiab lwm yam, uas ua rau nws nyuaj rau kev txiav txim siab seb txoj hlua puas hloov tau.
Hnav-tiv taus
A 12-strand HF-Rope yuav muaj qhov rub tawm ntawm cov ntaub qhwv thaum thawj zaug siv. Qhov no yog tshwm sim los ntawm kev tawg ntawm cov tshuaj fiber ntau filament, uas tsim cov ntaub thaiv npog rau hauv qab fiber ntau, uas yuav tsum ruaj khov thiab tsis ua rau hnyav dua.

Yog tias qhov nce ntawm qhov sib txhuam ntawm qhov chaw yuav ua rau muaj kev sib txhuam loj heev thiab ua rau muaj zog txo qis. Ob leeg sab hauv thiab sab nraud fibers yuav tsum tau kuaj xyuas kom zoo thaum kuaj cov hlua. Ib qho hnav yuav ua rau poob qis hauv txoj hlua. Muab cov strands los saib cov cim ntawm kev hnav sab hauv thiab kwv yees qhov hnav fiber ntau los ntawm kev kwv yees hnav sab hauv.
12 Txoj hlua -Normallyropes yuav tsum tau hloov thaum 25% lossis ntau dua ntawm txoj hlua hnav, lossis yog tias
fibers tawg los yog puas. Ob chav-braided hlua-rope tawv hnav 50% thiab yuav tsum tau hloov
Ci ntsa iab thiab ci
Lub xub ntiag ntawm ib qho chaw du lossis ci ntsa iab ntawm txoj hlua hlua yog qhov tshwm sim ntawm kev puas tsuaj thermal uas tuaj yeem ua rau lub zog poob ntau dua li kev puas tsuaj fiber ntau. Cov fibers nyob ib puag ncig ntawm thaj chaw no tuaj yeem tshwm sim los ntawm kev kub dhau, txawm tias lawv yuav zoo li qub. Nws yog qhov tsim nyog los xav tias cov fibers thawed ua rau kev puas tsuaj rau ib qho sib npaug ntawm cov uas tsis yog-melted fibers uas nyob ib sab.
Discoloration
Al ropes yog defaced thaum siv. Ua tib zoo saib seb qhov stain tuaj yeem tshwm sim los ntawm cov tshuaj lom neeg, los txiav txim siab qhov ua rau ntawm qhov stains thiab, txawm tias thaum txoj hlua tsis yooj yim los yog tawv thaum txoj hlua yuav tsum tau hloov.
Txoj kab uas hla tsis sib xws
Tshawb xyuas cov hlua khi rau flattening, bulging, los yog lumps, uas qhia tau hais tias cov hlua tseem ceeb los yog hlua nyob rau hauv ua rau kev puas tsuaj nyob rau hauv overloading los yog cuam tshuam load, thiab yuav tsum tam sim ntawd hloov txoj hlua.
Txoj hlua kev ntxhib los mos tsis sib xws.
Kev hloov ntawm txoj hlua kev ntxhib los mos los yog qhov chaw tawv nqaij qhia tias muaj impurity lossis xuab zeb ntawm txoj hlua los yog ua rau muaj kev puas tsuaj rau qhov cuam tshuam, qhov yuav tsum tau hloov txoj hlua tam sim ntawd. Kaum ob strands ntawm HF-Strandeach dais 833% (los yog 1/12) ntawm tag nrho cov load. Txhua txoj hlua raug tshuaj xyuas thiab sim rau hnav, stain, gloss, txoj kab uas hla, kev ntxhib los mos, thiab Hardness ntawm qhov tsis sib xws. Yog tias, thaum kuaj xyuas, muaj txoj hlua tawg lossis txoj hlua tsis muaj zog, cov hlua no yuav tsum tau muab pov tseg lossis tshem tawm ntawm qhov puas ntawm txoj hlua, thiab lawv yuav tsum tau kho nrog cov fittings tsim nyog.

Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau

Qingdao Luhang Marine Airbag thiab Fender Co., Ltd yog nyob rau hauv Jidong Industrial Park, Jimo nroog, Qingdao.Peb yog cov chaw tsim khoom ntawm muli-purpose marine cov cuab yeej suav nrog nkoj xa tawm thiab tsaws airbag, pneumatic roj hmab fender, EVA ua npuas ncauj fender, marine buoys Nyob rau hauv tob thiab ntiav seas, thiab lwm yam Los ntawm ntau xyoo'development thiab tsub zuj zuj, peb tau tsim mus rau ib tug tshiab high-tach enterprise nrog ib tug intergration ntawm scientific kev tshawb fawb thiab tsim, khoom R & D, muag thiab technical service.With advanced manufacturing khoom, nruj me ntsis QC , peb tau muab cov khoom zoo thiab kev pab cuam tom qab muag thiab dav appraised los ntawm domestic thiab txawv teb chaws cov neeg muas zaub. Tau ntau xyoo, peb tau ua peb qhov zoo tshaj plaws rau kev tshawb fawb thiab kev loj hlob cov khoom siab heev nrog tus cwj pwm tiag tiag thiab mob siab rau.

125

cov tswv cuab nquag

30+

xyoo kev

100+

National patent

Kev txawj ntse

FACTORY

1. Ntau tshaj 30 xyoo ntawm kev tsim khoom, khoom siv thawj zaug, tsis muaj tuam txhab lag luam los ua qhov sib txawv.

2. Credible tuam txhab ua cov khoom nrog optimzied roj hmab cov ntaub ntawv thiab txaus txheej. Koj tuaj yeem tau txais cov khoom uas koj them tiag tiag.

3. Kev ruaj ntseg zoo. Ua raws li ISO17357 nruj me ntsis thiab tag nrho cov khoom tuaj yeem raug tshuaj xyuas los ntawm Thib Peb xws li BV, SGS, V-Trust thiab lwm yam.

4. Ib qho kev ua tiav kev pab cuam tom qab muag ntau dua. Lub sijhawm lav ntev thiab yog tias muaj teeb meem zoo thaum lub sijhawm lav, peb yuav hloov ib qho tshiab dawb.

Tus nqi zoo tshaj los ntawm Factory

QUALITY

Zoo tom qab-muag kev pabcuam

TXOJ CAI TSHIAB

Peb paub zoo tias yog ib qho ntawm cov ua marine hlua manufacturers thiab cov muag khoom nyob rau hauv Suav teb. Yog hais tias koj yuav mus yuav customized marine hlua, txais tos kom tau txais pricelist thiab hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
